The development of the outdoor 15U climate-controlled cabinet took into account our customers’ needs:
- For the convenience of equipment placement and installation, the climate control cabinets have a modular design with the ability to change the height and depth of the racks;
- the ability to choose a climate control unit (fan, air conditioner);
- connectors for cable entry are located at the bottom and front.

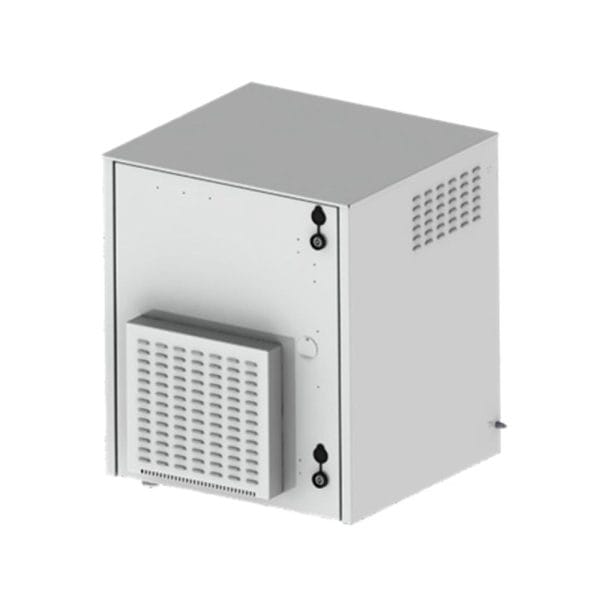

Technical Description of 15U Outdoor Cabinet for Telecom Equipment
| Heights | 15U |
| Working depth | 450 mm (25 mm adjustment step) |
| Color | gray (7035) |
| Level of protection | IP54 |
| Insulation | Alufom 10 mm |
| Body material | Sheet steel |
| Lock type | Lever type |
| Door opening angle | 110 degrees |
| Cable management | Bottom PG 11 (cable Ø 7-9 mm) – 4 pcs, PG 29 (cable Ø 18-24 mm) – 4 pcs. |
| Temperature control system | thermostat |
| Operating temperature | from -40°C to +45°C |
Basic Equipment of the 15U Climate-Controlled Cabinet
- Axial fan 220V, 2 pcs.
- 300 W heater – 1 pc.
- Thermostats and circuit breakers of the climate system – 1 set
- Din-rail 100mm (free length for placing customer’s vending machines) – 1 pc.
- PE rail – 1 pcs.
- rail N – 1 pcs.
- Keys to the lock – 3 pcs.
Terms of Cooperation with Manufacturer IPCOM-Group
- Wholesale supply at competitive prices
- Partial prepayment — lower risk for your business
- Production lead time: 4–6 weeks
- International delivery across Europe and beyond
Discover our wide range of climate-controlled telecom cabinets — built for reliability, ready for your projects.
