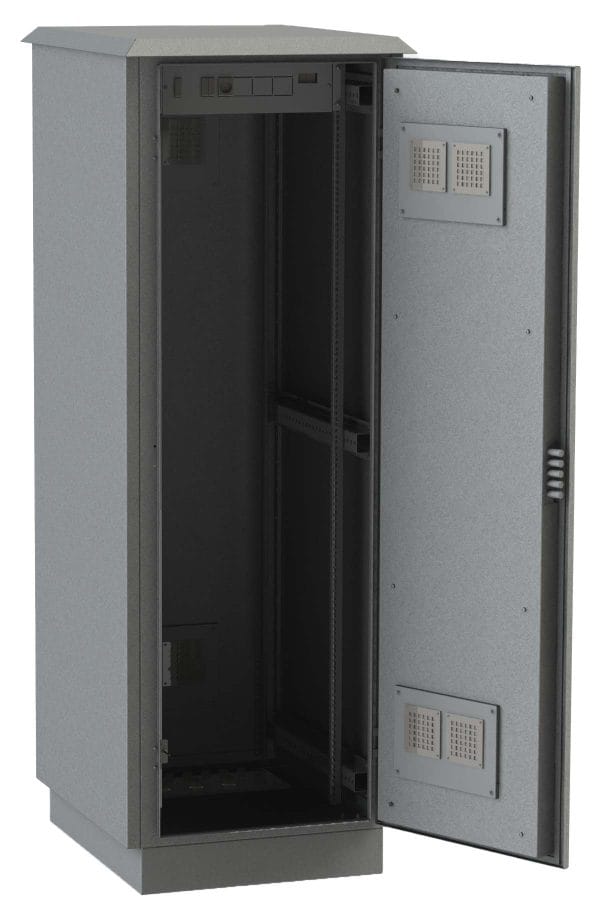

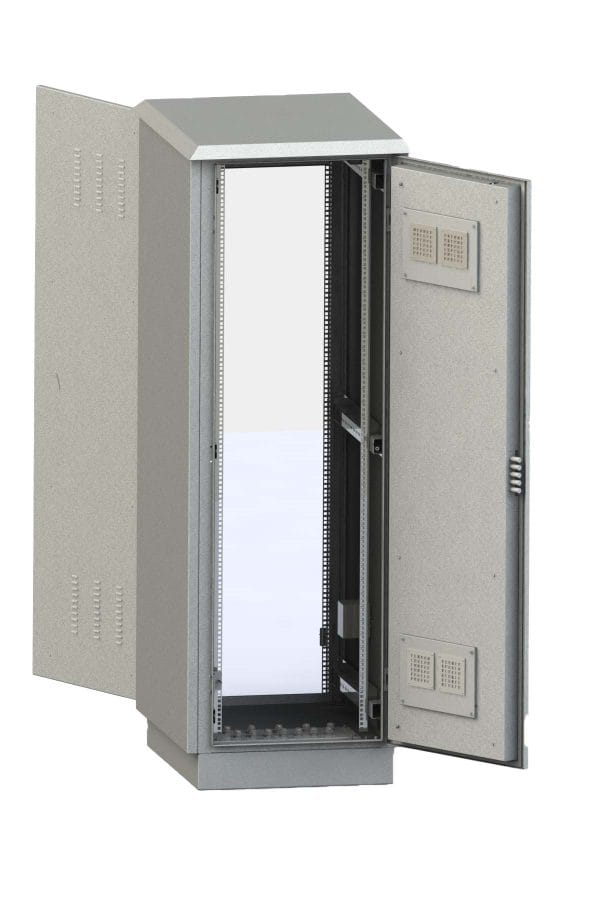

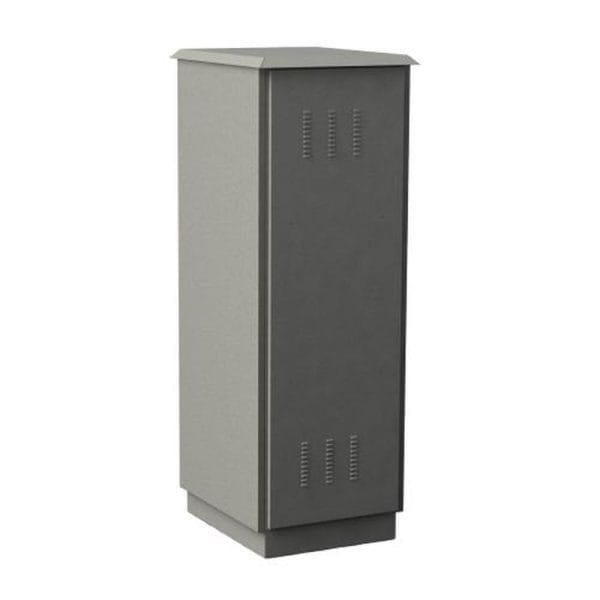

33U Outdoor Server Rack Cabinet

BRAND: IPCOM
MODEL: 33U



Delivery across the entire EU
Flexible payment terms
Technical support before and after purchase
Custom production tailored to your needs
SKU: E-0007254 Category:

33U Outdoor Server Cabinet 860mm

33U Outdoor Server Rack Cabinet IPCOM Floor standing telecommunication cabinets are designed to install and ensure trouble-free operation of telecommunication equipment in outdoor environments. Stable microclimate inside the box is ensured by well-designed air heating and ventilation systems with dust filters. To preserve heat, the space between the double walls of the cabinet is filled with mineral wool. An electrical distribution panel and unit racks are also included. Tampering and theft of electronics is prevented by the all-welded construction, a lock and a sensor that signals the opening of the door.

Additional information

Rack Height, U

33

Height, mm

1700

Depth, mm

860

Width, mm

720

Usable equipment height

30U

Electrical distribution panel (EDP) height

3U

Door

Steel

Color

Gray (RAL: 7035)

Protection class, IP

54

Fan

4 × 160 m³/h

Heating fan

400W

Insulation type

Mineral wool

Door opening angle

120 degrees

Number of mounting rails

4

Step for adjusting mounting racks

25

Weight, kg

195

Max. static load, kg

1000

Maximum depth along mounting rails, mm

624

Maximum internal depth from door to door, mm

673

Cable glands

PG 13.5 – 2 pcs
PG 21 – 7 pcs
PG 29 – 3 pcs

Construction

Modular (knock-down)

Type

Floor-standing
